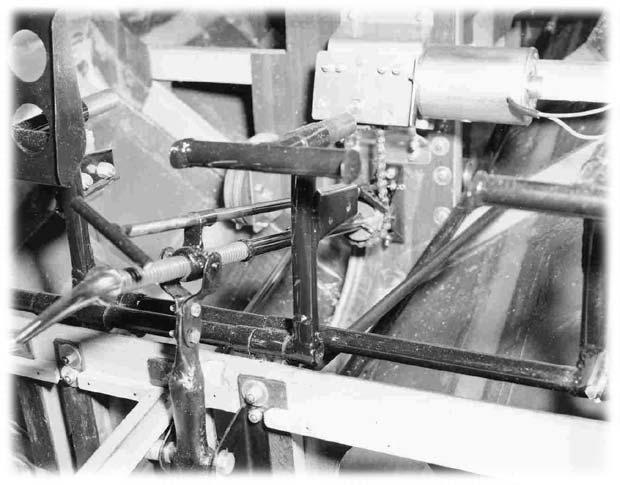

Here is an outstanding close-up of the #622-7 trunnion captured by the #611 actuator arm,
resulting in a worm drive for gear retraction and extension. Note the steel supports to Station 22.
Above the trunnion is the handle for actuating an electric motor assist for gear retraction.
|
